Single Screw Steel Wire Reinforced PVC Hose Making Machine With Screw Speed Of 75 Rpm

Name: Single Screw Steel Wire Reinforced PVC Hose Making Machine With Screw Speed Of 75 Rpm
Brand: Siemens Motor / ABB inverter
Price: 17 USD

Place of Origin : Shandong, China

Brand Name : Siemens Motor / ABB inverter

Certification : CE/ISO

Packaging Details : Before dilivery, our workers will be carefully pack the whole set machine to promise safely arriving to customer's workshop. Cling film packing/ Buble film packing/ steel box tray/ oil process(against crutst)

Supply Ability : 10 Set/Sets per Month

Price : $17,500.00/sets

Condition : New

Plastic Processed : PVC

Application : PIPE

Screw Design : Single-screw

Screw Material : 38CrMoAlA

Screw diameter (mm) : 65mm

Screw L/D Ratio : 28:1

Screw Speed (rpm) : 75 rpm

Showroom Location : India, None

Voltage : 380V / Customised

Dimension(L*W*H) : 15m*3m*2.6m

Power (kW) : 35

Weight : 2800 KG

Warranty : 1 Year

Key Selling Points : Energy saving

Applicable Industries : Manufacturing Plant

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : PLC, Gearbox

Machinery Test Report : Not Available

After Warranty Service : Video technical support

Marketing Type : New Product 2021

Contact Now

Single-screw Steel Wire Reinforced PVC Hose Making Machine with Screw Speed of 75 rpm

HSJ-65 PVC Steel Wire Hose Making Machine

Steel Wire Reinforced

HSJ-65 Steel Wire Reinforced PVC Pipe Manufacture Plant includes Spiral Steel Forming Machine, Single Screw Extruder, Coating Mould, Cooling Water Tank, Traction and Winding Unit, which is a highly automatic designed machine, very easy to operate.

Steel Wire Reinforced ~ PVC Hose is mostly used for liquid supply, gas supply, powder convey, etc, which is widely used in industry, agriculture, architecture, water conservancy irrigation and dust collector, etc. It has the advantage of pressure and corrosive resistance, negative pressure and bend resistance.

TECHNICAL SHEETS

You can choose different model of machine, according to the hose size you want manufacture

Model	Dia -25	Dia -50	Dia -102	Dia -156
Extruder	HSJ-45/28(7.5kw)	HSJ-65/28(18.5kw)	HSJ-65/28(30kw)	HSJ-75/28(37kw)
Diameter Range	12-25mm	25-50mm	50-102mm	102-156mm
Output	40kg/h	60kg/h	80kg/h	120kg/h
Installation Power	16kw	35kw	70kw	85kw

Product Description

Production Line Information

Steel Wire Twisting → Single Screw Extruder → Mould → Cooling Water Tank → Traction Machine → Winder(Colier)

Machine Name	Model	Quantity
Automatic Vacuum Loader	SD-300G	1 Set
Hopper Drier	Volume: 50kg	1 Set
Single Screw Extruder(Soft Granules material)	65/28, motor 18.5kw	1 Set
Steel Wire Spiral Forming Machine	2.2kw	1 Set
Coating Extrusion Mould	φ 50mm	1 Set
Bathing Cooling Water Tank	L-2500mm	1 Set
Auto-Traction Machine	0.75kw× 2 pieces	1 Set

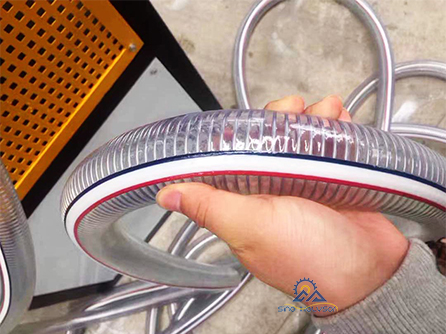

HOSE SAMPLES

Designed with

3-color Marking Lines

Delivery
